Efficient 4 Cavity Automatic Servo Bottle Blow Molding Machine
4000-4500 pcs/h
PET blowing machine for 2L linear bottle blowing machines are used in the production of PET water bottles, hot filling bottles, carbonated beverage bottles, edible oil bottles, and pesticide bottles.
Shuanghao Machinery's linear bottle blowing machine stretches preforms by using a servo motor-controlled stretch rod. The advantage is that it can be stretched in sections,and positioning of the preform is at first in order to ensure the verticality of the preforms during stretching, then secondary stretching.
Ensure the uniformity and consistency of each preform stretching.At the same time,bottle blowing machine has a fast stretching speed and precise position.
- 1000-2000ml, mineral water bottle, Cosmetic bottles
- 30-45 days easy Finish
- offers 24/7 support to ensure round-the-clock customer assistance.
Plastic Bottle Making Machine Manufacturers,PET Bottle Blowing Machine
With over a decade of manufacturing experience in the automatic PET blowing machine industry, we are confident with our high-quality products helping you achieve your company goals. Allow Shuanghao Machine to supply your bottle-making machine requirements and experience the superior difference with our advanced equipment.
| TYPE | ITEM | SH-2000-4 |
| Product paramerers | NO. of cavity | 4Cavites |
| Production capacity | 4000-4500pcs/hr | |
| Max.volume | 2.0L | |
| Max.neck size | 38mm | |
| Max.diameter | 110mm | |
| Max.height | 320mm | |
| Power specifications | NO.of lamp | 40pcs |
| Max.heating power | 80kw | |
| Total machine power | 80kw | |
| Actual power consumption | 16kw | |
| Air pressure specifications | Working pressure | 0.7-0.9Mpa |
| Low pressure gas consumption | 2000Ltr/min | |
| Blow bottle pressure | 3.5Mpa | |
| Hig pressure gas consumption | 5000ltr/min | |
| Cooling water specifications | Chiller pressure | 0.3-0.5Mpa |
| Temperature range | 10℃ | |
| Consumption | 40L/Min | |
| Appearance specifications | Machine size | 4.5*1.6*2.0cm |

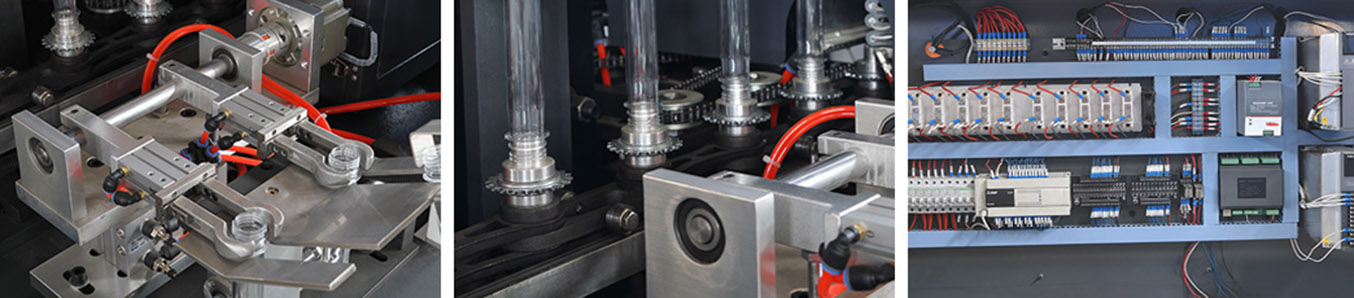

1.DETAILED IMAGES
Shuanghao machine seiko to create quality details
2.Cooperated Brand
The main parts of The machines are from Germany, Japan, Switzerland, Korea, Taiwan and so on, They can make 10ml-25L bottles and barrels and jars with different designs and shapes with PET, PP, PE and other material. Our machines are sold to Malaysia, lndonesia, Thailand, Nigeria, Ecuador, Colombia, Paraguay, and many other countries and regions.To produce machines with the best quality and simple operation and with the best price is the aim for Meto Machinery to strive for.
- Stable and accurate running at high speed,adopt more stable and advanced microcomputer PLC control system.
- Production process is fully automated, with the advantages of low investment, high efficiency, easy operation, simple maintenance and safety.
- Suitable for flexible production of quantity and various bottle shape,wide range of applications,meet customer needs.
- Manual and automatic methods of operation, human-machine interface control, simple operation.
- Servo transmission system, high positioning accuracy, fast speed stability and good reliability.
3.Product Features
4.Working Process
