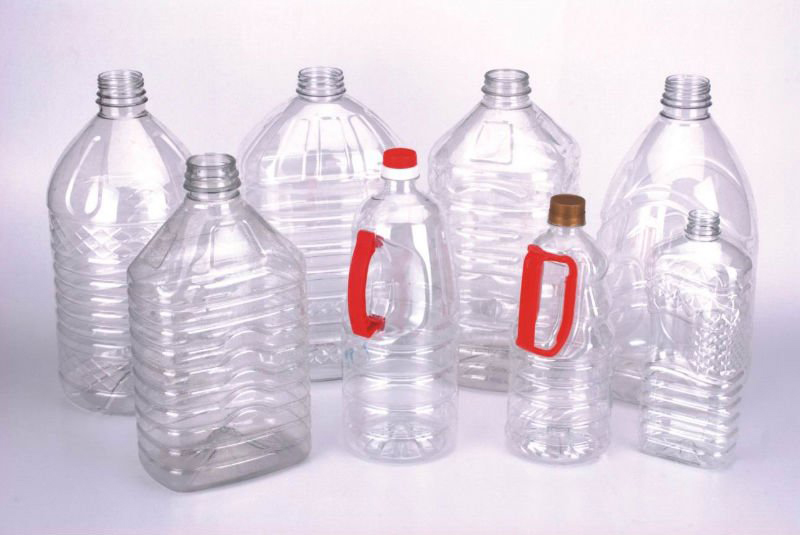

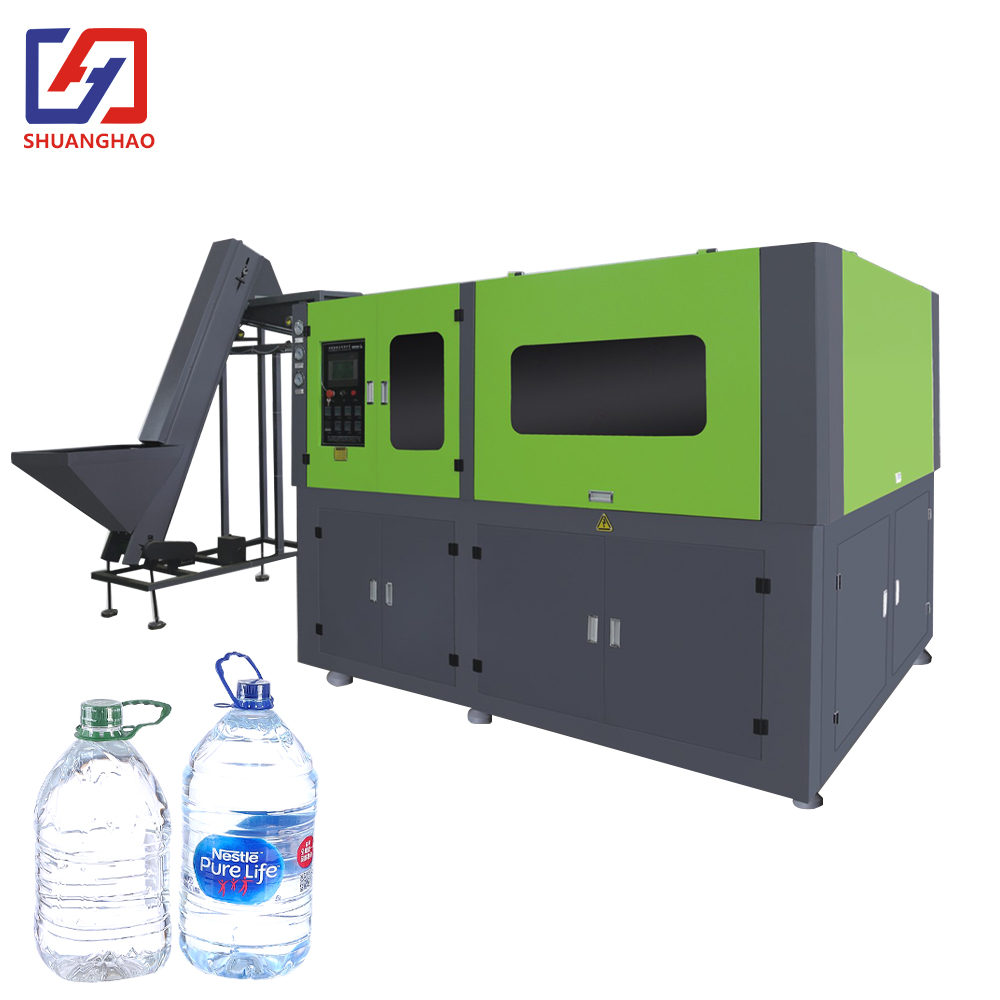

full automatic 5 gallon pet bottle stretch blow moulding machine can produce different shapes from 10L to 15L water bottles,edible oil bottles and other bigger plastic PET containers. High speed,low defect rate,stable running and easy operation.

Machine Parts
a.PLC controller touch screen : Mitsubishi (Japan)
b.Pneumatic parts:AIRTAC(TAIWAN)
c.Controller of stretch ,shift ,clamping servo motor : Mitsubishi(Japan)
d.Other parts are world-famous brands

TYPE	ITEM	SH-10L-2	SH-15L-2
Power specifications	Max. volume	10L	15L
	NO. of cavity	2Cavites	2Cavites
	Production capacity	1500-1800pcs/hr	1300-1600pcs/hr
	Max. neck size	45-80mm	45-80mm
	Max. diameter	210mm	260mm
	Max. height	450mm	480mm
Power specifications	NO. of lamp	60pcs	60pcs
	Max. heating power	100kw	100kw
	Total machine Power	100kw	100kw
	Actual power consumption	22kw	22kw
Air pressure specifications	Working pressure	0.7-0.9mpa	0.7-0.9mpa
	Low pressure gas consumption	2600ltr/min	2600ltr/min
	Blow bottle pressure	25-35kg/	25-35kg
	High pressure gas consumption	4500-5000ltr/min	4500-5000ltr/min
Chiller specifications	Working pressure	5-6kc/	5-6kc/
	Temperature range	10℃	10℃
	Consumption	6600kcal/hr	6600kcal/hr
	Chilled water flow rate	45ltr/min	45ltr/min
Appearance specifications	Machine size	5.6*2.1*2.1m	5.6*2.1*2.1m
	Machine weight	5.5T	5.5T

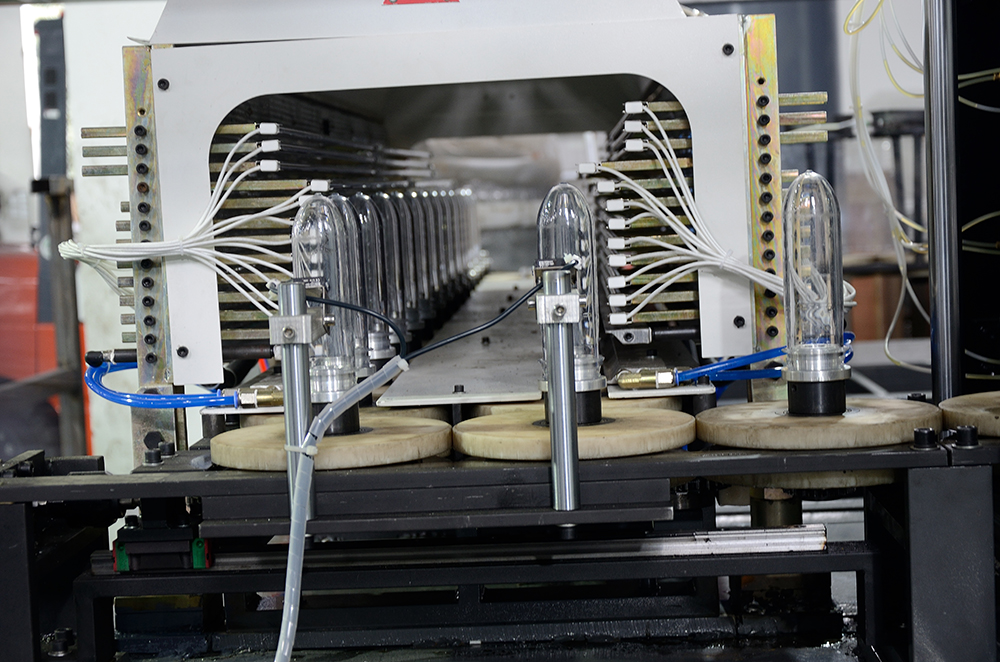

Technical features of 5 gallon stretch blow molding machine 1. Blowing system: create the high-pressure integration valve group, the single cavity productive capacity is increased by 60%. 2. Concentrated heating system: patent light box provides an even temperature, lamp distance 101mm rather than 240mm from othersand save power by more than 50%. 3. Stretching system: use linear sliding track framework instead of liner bearing, which offers an outstanding improvement ofstability. 4. Main transmission system: adopt patent double strand roller chains technology, to assure the demands of stability and high speed. 5. Hydraulic mould clamping system replace the traditional pneumatic clamping system ,booster pressure from one sides with 2 plateforming to assure the high clamping stability at a pass rage of 99.8%.

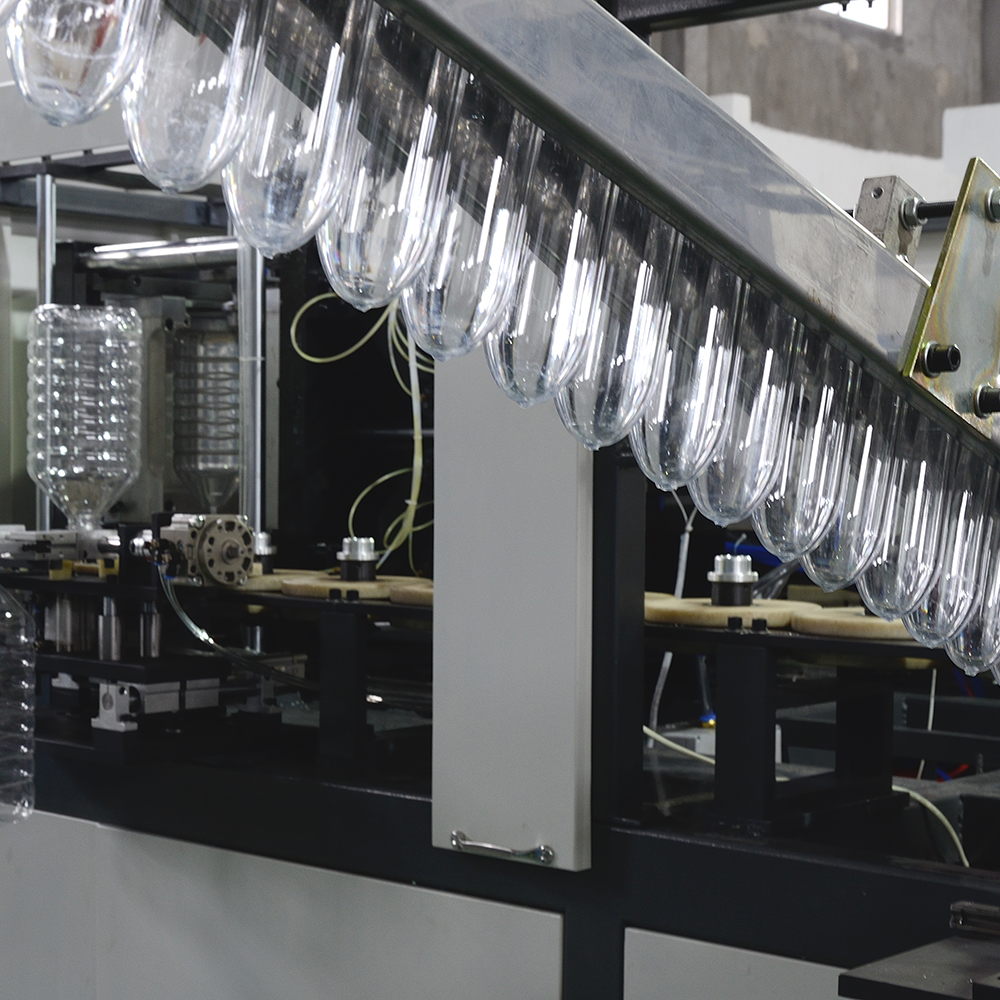

1.DETAILED IMAGES

Shuanghao machine seiko to create quality details

2.Cooperated Brand

The main parts of The machines are from Germany, Japan, Switzerland, Korea, Taiwan and so on, They can make 10ml-25L bottles and barrels and jars with different designs and shapes with PET, PP, PE and other material. Our machines are sold to Malaysia, lndonesia, Thailand, Nigeria, Ecuador, Colombia, Paraguay, and many other countries and regions.To produce machines with the best quality and simple operation and with the best price is the aim for Meto Machinery to strive for.

3.Product Features

• Stable and accurate running at high speed,adopt more stable and advanced microcomputer PLC control system.
• Production process is fully automated, with the advantages of low investment, high efficiency, easy operation, simple maintenance and safety.
• Suitable for flexible production of quantity and various bottle shape,wide range of applications,meet customer needs.
• Manual and automatic methods of operation, human-machine interface control, simple operation.
• Servo transmission system, high positioning accuracy, fast speed stability and good reliability.

4.Working Process
