TYPE	ITEM	SH-5L-2
Product paramerers	Max. volume	5L
	NO. of cavity	2Cavites
	Production capacity	1500-2000pcs/hr
	Max. neck size	45-80mm
	Max. diameter	190mm
	Max. height	360mm
Power specifications	NO. of lamp	60pcs
	Max. heating power	100kw
	Total machine Power	100kw
	Actual power consumption	22kw
Air pressure specifications	Working pressure	0.7-0.9mpa
	Low pressure gas consumption	2600ltr/min
	Blow bottle pressure	25-35kg/
	High pressure gas consumption	4500-5000ltr/min
Chiller specifications	Working pressure	5-6kc/
	Temperature range	10℃
	Consumption	6600kcal/hr
	Chilled water flow rate	45ltr/min
Appearance specifications	Machine size	5.6*2.1*2.1m
	Machine weight	5.5T

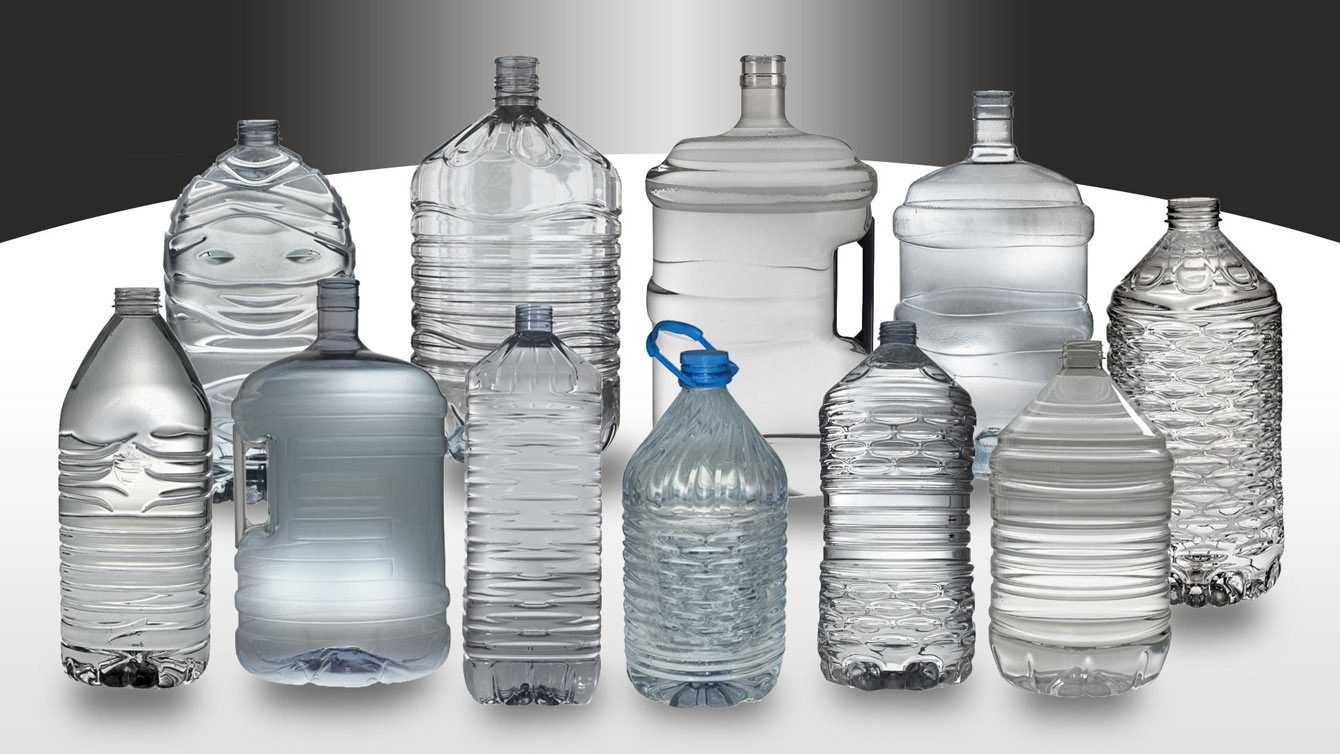

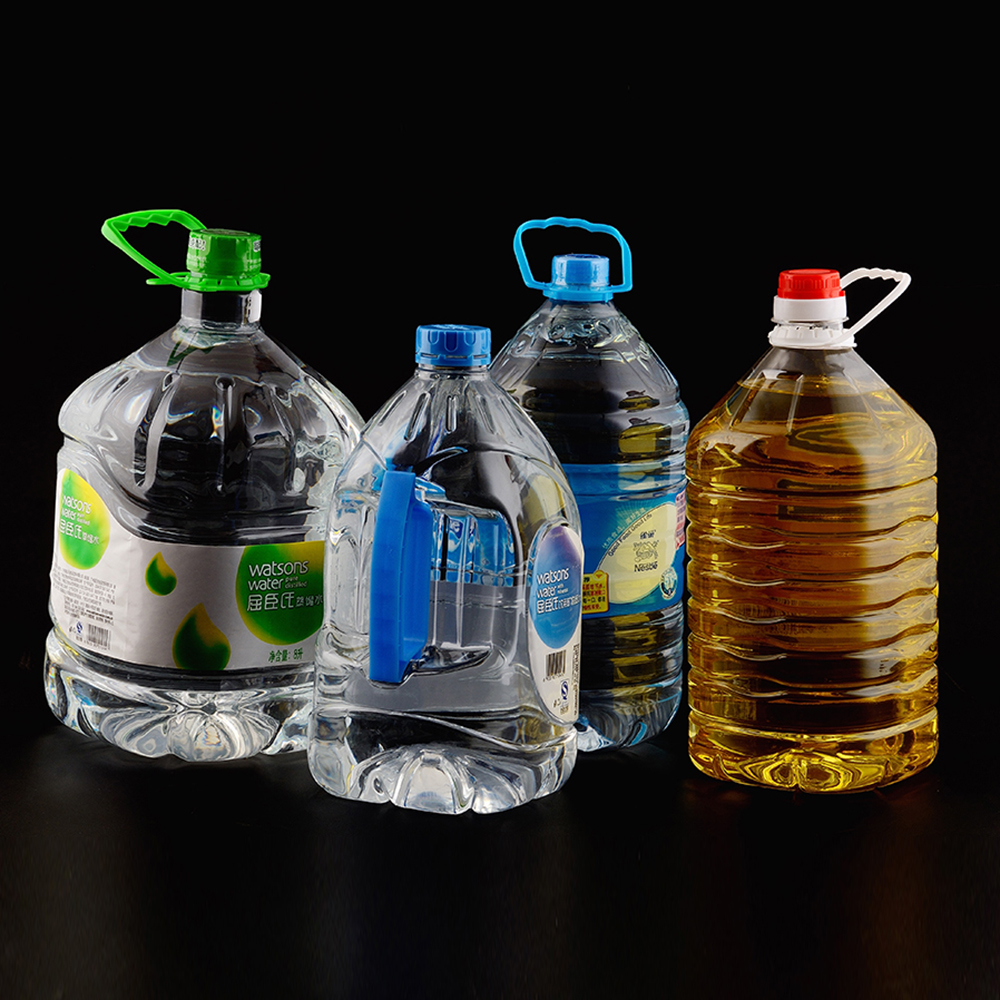

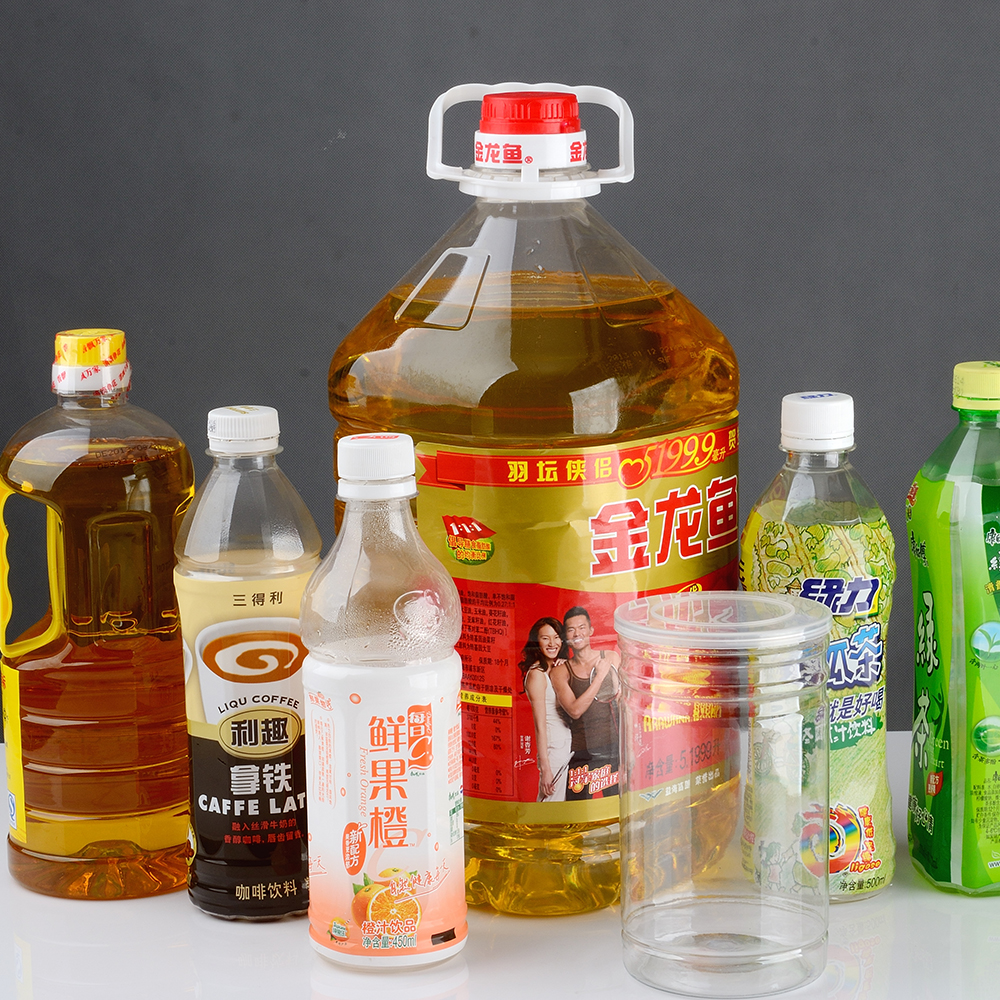

Edible oil bottle PET bottle blowing machine with up to 3 cavity, single cavity can manufacture PET bottles, 5 liters of cooking oil. This edible oil PET bottle blowing machine can also blow up other 2L large capacity plastic packaging containers, such as carbonated beverage bottles, middle and low temperature filling fruit juice beverage bottles, mineral water bottles, pesticide bottles and other plastic bottles blowing molding.

Product Features

• Stable and accurate running at high speed,adopt more stable and advanced microcomputer PLC control system.
• Production process is fully automated, with the advantages of low investment, high efficiency, easy operation, simple maintenance and safety.
• Suitable for flexible production of quantity and various bottle shape,wide range of applications,meet customer needs.
• Manual and automatic methods of operation, human-machine interface control, simple operation.
• Servo transmission system, high positioning accuracy, fast speed stability and good reliability.

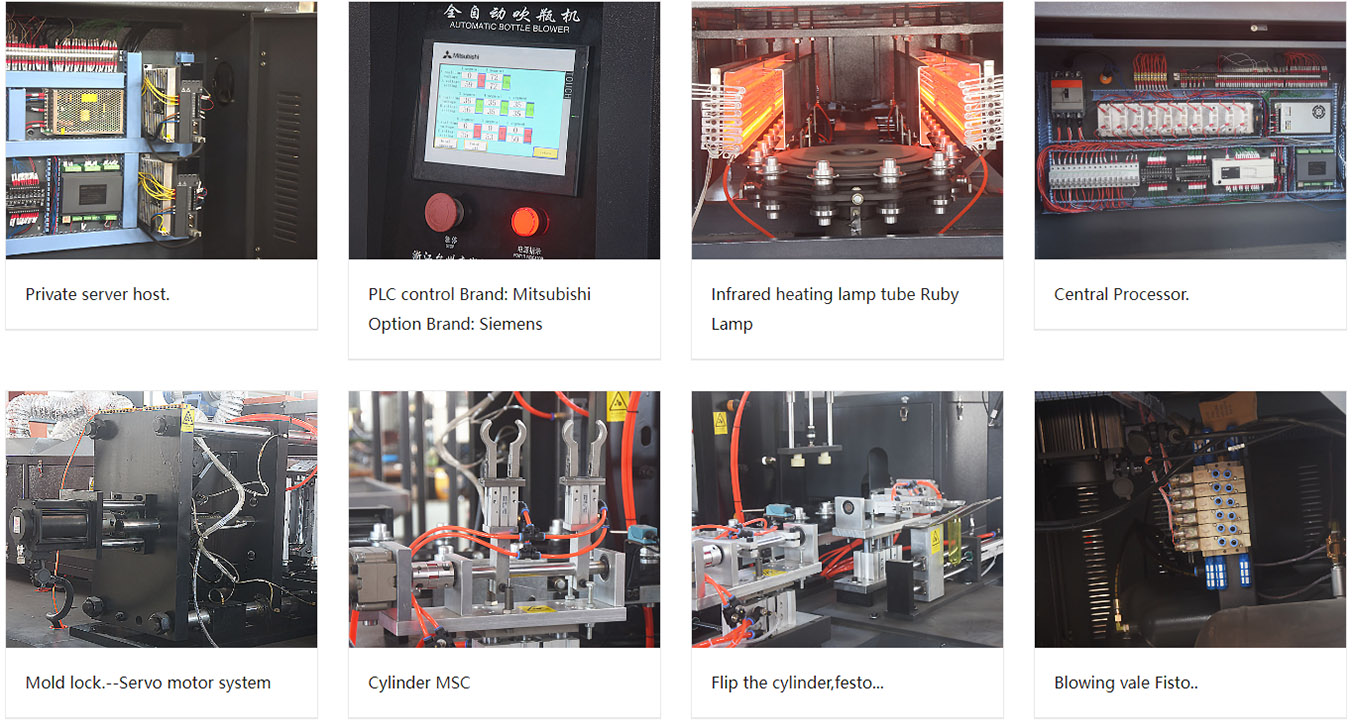

1.DETAILED IMAGES

Shuanghao machine seiko to create quality details

2.Cooperated Brand

The main parts of The machines are from Germany, Japan, Switzerland, Korea, Taiwan and so on, They can make 10ml-25L bottles and barrels and jars with different designs and shapes with PET, PP, PE and other material. Our machines are sold to Malaysia, lndonesia, Thailand, Nigeria, Ecuador, Colombia, Paraguay, and many other countries and regions.To produce machines with the best quality and simple operation and with the best price is the aim for Meto Machinery to strive for.

3.Product Features

• Stable and accurate running at high speed,adopt more stable and advanced microcomputer PLC control system.
• Production process is fully automated, with the advantages of low investment, high efficiency, easy operation, simple maintenance and safety.
• Suitable for flexible production of quantity and various bottle shape,wide range of applications,meet customer needs.
• Manual and automatic methods of operation, human-machine interface control, simple operation.
• Servo transmission system, high positioning accuracy, fast speed stability and good reliability.

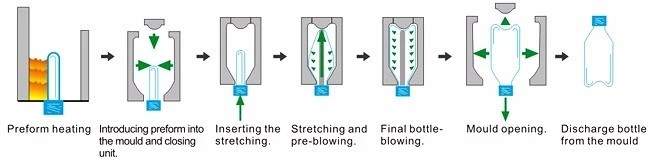

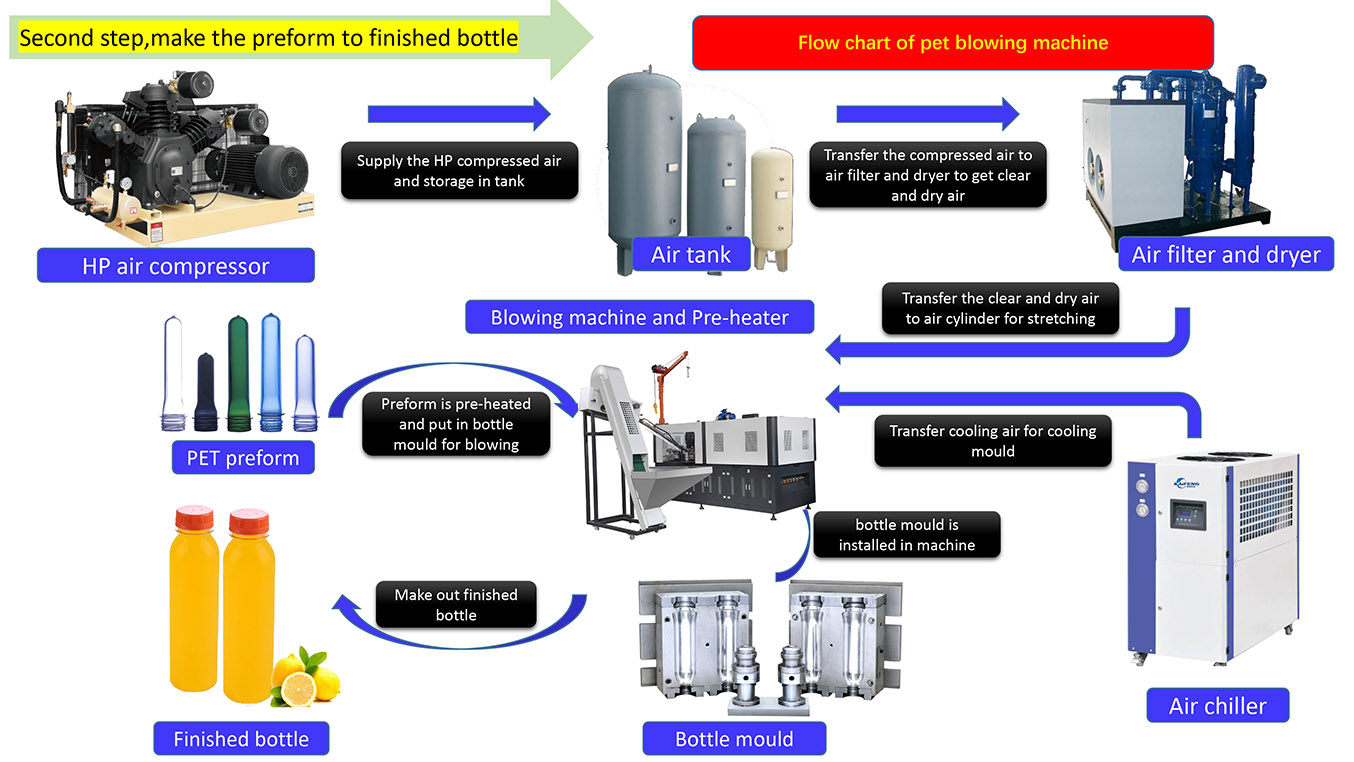

4.Working Process
