Good Quality 7L 10L Bottle Automatic Pet Blow Making Machine Plastic Jar Full automatic wide mouth candy jar blowing machine

Good Quality 7L 10L Bottle Automatic Pet Blow Making Machine Plastic Jar Full automatic wide mouth candy jar blowing machine

1200-1500 pcs/h

1. High pressure Elida combined air
compressor
Specification Model: CWM-2.0/30-YQ
Power: 22kw
Speed: 620r/min
Exhaust volume: 2.0m³/min
Rated working pressure: 3.0Mpa
Equipment weight: 600kg
Dimensions: 1900mm × 930mm × 1230mm
Specification Model: 1.0/30
Volume: 1.0m³
Rated working pressure: 3.0Mpa
Net weight of equipment: 590kg
Dimensions: 800*2400mm
Specification Model: KL-70G(2.0/30-40)
Rated treatment gas volume: 2.6m³/min
Rated working pressure: 3.0Mpa
Working temperature: ≤5-56℃
Net weight of equipment: 20kg
Dimensions: 660*300mm

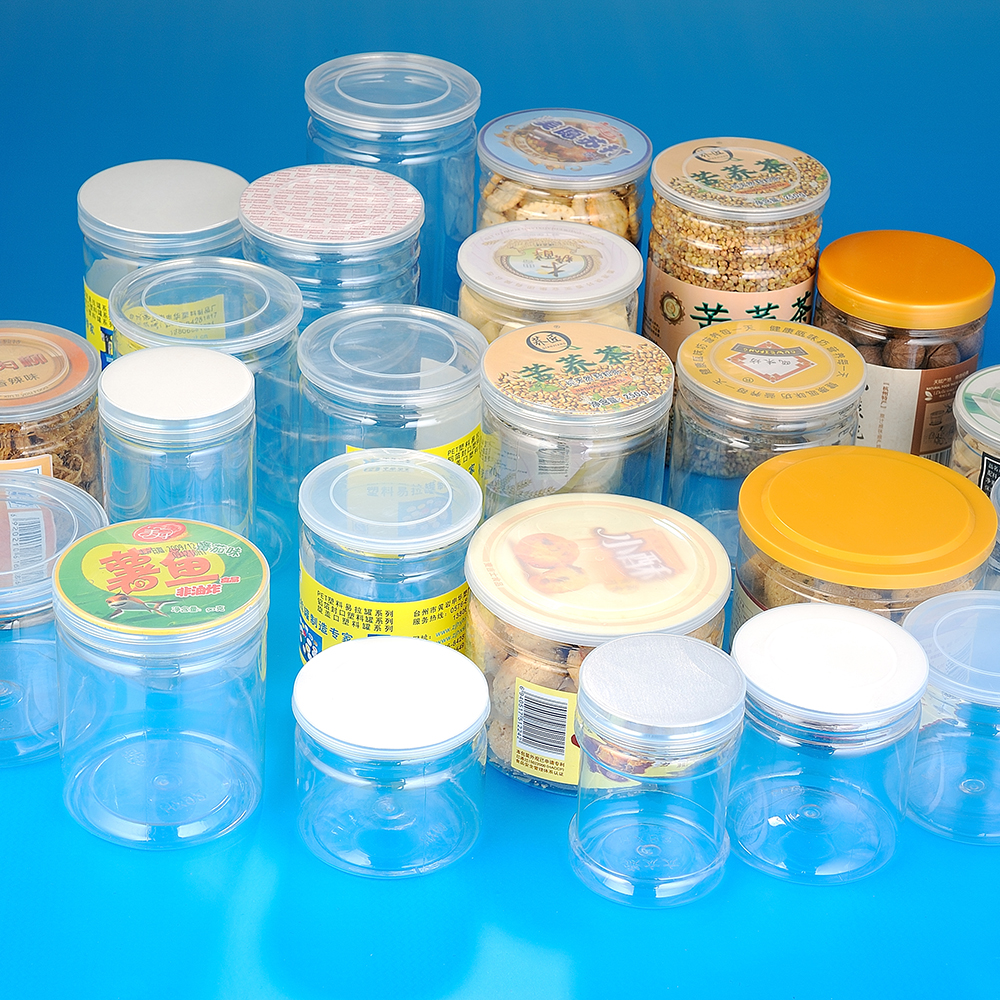

  • Cosmetic bottles, Jar Wide mouth
  • 30-45 days easy Finish
  • offers 24/7 support to ensure round-the-clock customer assistance.
  • Description
Good Quality 7L 10L Bottle Automatic Pet Blow Making Machine Plastic Jar Full automatic wide mouth candy jar blowing machine

Wide Mouth Candy Jar Blowing Machine , Pet Jar Bottle Making Machine
My factory concentrating on plastic container packaging the whole line of solutions,to provide from PET preforms to bottle design full automatic blow moulding machine as well as bottle mould ,solutions.
Adopt domestic and foreign well-known brand accessories and processing equipment, install and produce, (mainly equipped with Japan's Mitsubishi PLC and touch screen, Germany's Schneider Electric, Japan's Xinbao reducer, Taiwan's Xinjie servo motor, Taiwan's AirTac pneumatic accessories, and domestic advanced ruby Lamps, etc.) Our products are aimed at jars, cans, spiral cans, and various jars, etc. Our products are sold in more than 100 countries and regions such as Europe, the United States, India, Russia, the Middle East, and Southeast Asia to provide high-quality bottle making machines. and service Bottle Making Machine Latest Price, Manufacturers

Item
5L2
Bottle type specification Cavity 2
Theory output 1200-1300 bph
Max.volume 5L
Bottle mouth maximum overall diameter 150mm
Bottle biggest diameter 180mm
Bottle maximum height 400mm
Power specification Light tube quantity 32pcs
Light tube power 1.5KW
Maximum heating power 48KW
All electric machine installation 51KW
Actual consumption 30%-60%
Air pressure specification Work pressure 7-9kg/c㎡
Low-pressure gas consumption 1600L/min
Blow bottle pressure 25-35kg/c㎡
Higher -pressure gas consumption 3400Ltr/min
Air pressure specification
Work pressure 5-6 kg/c㎡
Temperature range 10℃
Consumption 6000kcal/hr
Frozen water flow 50L/min
Machine specification Machine size 4.7x1.7x1.9
Machine weight 4.5ton


1.DETAILED IMAGES

Shuanghao machine seiko to create quality details

Good Quality 7L 10L Bottle Automatic Pet Blow Making Machine Plastic Jar Full automatic wide mouth candy jar blowing machine

2.Cooperated Brand

The main parts of The machines are from Germany, Japan, Switzerland, Korea, Taiwan and so on, They can make 10ml-25L bottles and barrels and jars with different designs and shapes with PET, PP, PE and other material. Our machines are sold to Malaysia, lndonesia, Thailand, Nigeria, Ecuador, Colombia, Paraguay, and many other countries and regions.To produce machines with the best quality and simple operation and with the best price is the aim for Meto Machinery to strive for.

Good Quality 7L 10L Bottle Automatic Pet Blow Making Machine Plastic Jar Full automatic wide mouth candy jar blowing machine

    3.Product Features

  • Stable and accurate running at high speed,adopt more stable and advanced microcomputer PLC control system.
  • Production process is fully automated, with the advantages of low investment, high efficiency, easy operation, simple maintenance and safety.
  • Suitable for flexible production of quantity and various bottle shape,wide range of applications,meet customer needs.
  • Manual and automatic methods of operation, human-machine interface control, simple operation.
  • Servo transmission system, high positioning accuracy, fast speed stability and good reliability.

4.Working Process

Good Quality 7L 10L Bottle Automatic Pet Blow Making Machine Plastic Jar Full automatic wide mouth candy jar blowing machine
Good Quality 7L 10L Bottle Automatic Pet Blow Making Machine Plastic Jar Full automatic wide mouth candy jar blowing machine
