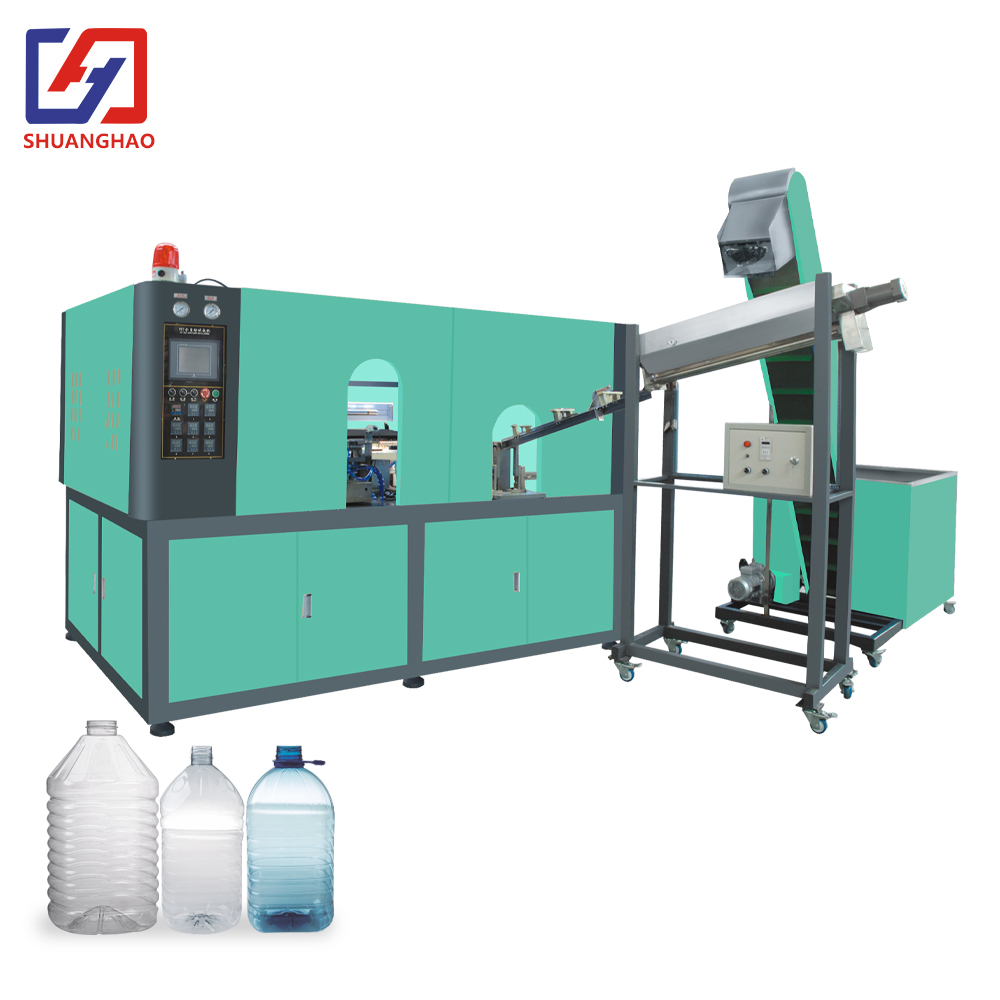

Stretch Blowing Machine For 5 Litre Pet Oil Bottles 1 Cavity 900 BPH China 5L Plastic Bottle Blow Molding Machine Factory

Stretch Blowing Machine For 5 Litre Pet Oil Bottles 1 Cavity 900 BPH China 5L Plastic Bottle Blow Molding Machine Factory

700-900 pcs/h

If you are looking for a reliable and efficient stretch blowing machine that can produce 5L bottles for edible oil, then look no further than the SH-5L stretch blowing machine. This machine is built to offer high-quality performance, exceptional durability, and consistent output rates, all while maintaining low energy consumption.

Featuring a single cavity and a production rate of 900 bottles per hour, the SH-5L is ideal for small to medium-sized businesses seeking to improve their production line's efficiency and productivity. This machine is engineered to provide consistent stretching and blowing of PET preforms to produce high-quality bottles that are strong, lightweight, and transparent.

What makes the SH-5L stand out from other stretch blowing machines on the market is its advanced technology and features. The machine is equipped with an advanced touch screen control system that is easy to operate, allowing for fast and simple settings adjustment. Additionally, the SH-5L incorporates a unique infrared heating system that ensures even heating of the preforms, providing consistent stretching and blowing while reducing the risk of overheating or underheating.

Another great feature of the SH-5L stretch blowing machine is its high degree of automation. The machine's automated processes, including preform feeding, heating, stretching, and blowing, eliminate the need for constant monitoring by an operator, maximizing production efficiency and reducing the risk of errors and wasted materials.

  • 1000-2000ml, 10L-20L, 3L-5.5L
  • 30-45 days easy Finish
  • offers 24/7 support to ensure round-the-clock customer assistance.
  • Description
Stretch Blowing Machine For 5 Litre Pet Oil Bottles 1 Cavity 900 BPH China 5L Plastic Bottle Blow Molding Machine Factory

Main Features

1. This stretch blow molding machine, the SH-5L1, is the perfect solution for automating the production of 5-liter edible oil bottles.

2. With a production capacity of 900 bottles per hour, it's perfect for medium to high-volume production lines.

3. The SH-5L1 is an automatic machine that eliminates the need for manual labor and reduces production costs.

4. It allows for precision and consistency in bottle production, ensuring that each bottle meets the same high-quality standards.

5. Choose the SH-5L1 for a reliable and efficient solution to your 5-liter edible oil bottle production needs.


Item

SH-5L-1

Bottle type specification

Cavity

1

Theory output

700-900

Max.volume

5L

Bottle mouth maximum overall DIdiameter

150mm

Bottle biggest diameter

180mm

Bottle maximum height

400mm

Power specifications

Light tube quantity

32pcs

Light tube power

1.5KW

Maximum heating power

48KW

All electric machine installation

51KW

Actual consumption

35.7KW

Air pressure specification

Work pressure

7-9kg/cm2

Low-pressure gas consumption

1600L/min

Blow bottle pressure

25-35kg/cm2

Higher -pressure gas consumption

3400Ltr/min

Forzen water specification

Work pressure

5-6 kg/cm2

Temperature range

10℃

Consumption

6000kcal/hr

Forzen water flow

50L/min

Machine specification

Size of the machine

2.5x1.6x1.7

Weight of the machine

2.5ton

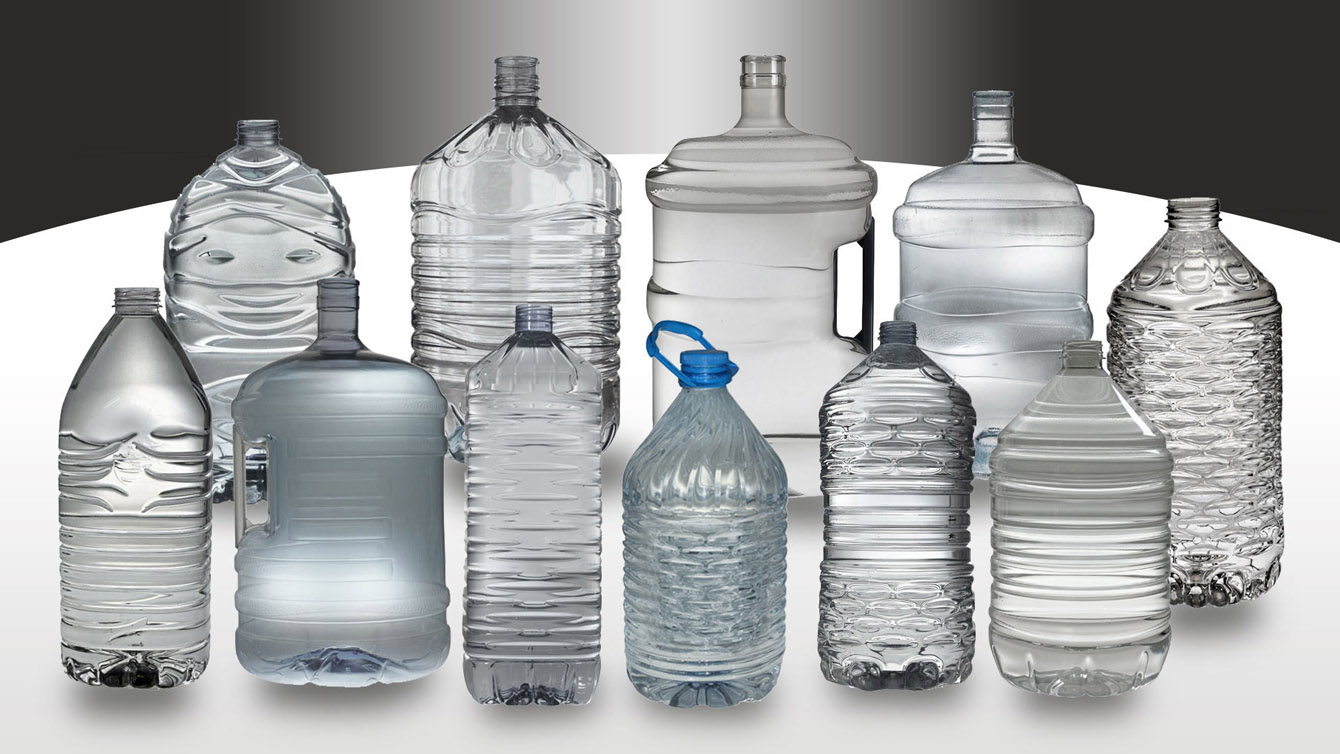

Shuanghao can produce various shapes and sizes of plastic bottles and containers, including but not limited to:

● Round Bottles: Fully automatic blow molding machines can produce round bottles in various shapes and sizes, such as water bottles, juice bottles, soda bottles, etc.

● Square Bottles: Fully automatic blow molding machines can also produce square or rectangular bottles, which are commonly used for shipping Cosmetic, body washes, shampoos, liquid detergents, cleaning agents, soap solutions, etc.

● Irregular-Shaped Bottles: In addition to the above shapes, fully automatic blow molding machines can also produce bottles with unique shapes, such as flat bottles, triangular bottles, hexagonal bottles, etc. In reality, we can produce many different shapes and sizes of bottles, depending on its design and configuration.If you have any questions, please contact us.


Servo transmission system
High positioning accuracy, fast speed and stability, good reliability. Gas circuit design will divide action and blowing into three parts to meet the needs of different pressure for blowing bottles and movement; Adopt high pressure and double crank arm link locking, strong clamping force.
Adopt infrared lamp heating
Adopt infrared lamp heating, strong penetration, preform rotation heating, track revolution, heating evenly, fast and reliable; Heating lamp, reflector width and height can be adjusted to suit preform heating of different structure, with automatic temperature-removal device to ensure the constant temperature of oven.


1.DETAILED IMAGES

Shuanghao machine seiko to create quality details

Stretch Blowing Machine For 5 Litre Pet Oil Bottles 1 Cavity 900 BPH China 5L Plastic Bottle Blow Molding Machine Factory

2.Cooperated Brand

The main parts of The machines are from Germany, Japan, Switzerland, Korea, Taiwan and so on, They can make 10ml-25L bottles and barrels and jars with different designs and shapes with PET, PP, PE and other material. Our machines are sold to Malaysia, lndonesia, Thailand, Nigeria, Ecuador, Colombia, Paraguay, and many other countries and regions.To produce machines with the best quality and simple operation and with the best price is the aim for Meto Machinery to strive for.

Stretch Blowing Machine For 5 Litre Pet Oil Bottles 1 Cavity 900 BPH China 5L Plastic Bottle Blow Molding Machine Factory

    3.Product Features

  • Stable and accurate running at high speed,adopt more stable and advanced microcomputer PLC control system.
  • Production process is fully automated, with the advantages of low investment, high efficiency, easy operation, simple maintenance and safety.
  • Suitable for flexible production of quantity and various bottle shape,wide range of applications,meet customer needs.
  • Manual and automatic methods of operation, human-machine interface control, simple operation.
  • Servo transmission system, high positioning accuracy, fast speed stability and good reliability.

4.Working Process

Stretch Blowing Machine For 5 Litre Pet Oil Bottles 1 Cavity 900 BPH China 5L Plastic Bottle Blow Molding Machine Factory
Stretch Blowing Machine For 5 Litre Pet Oil Bottles 1 Cavity 900 BPH China 5L Plastic Bottle Blow Molding Machine Factory
