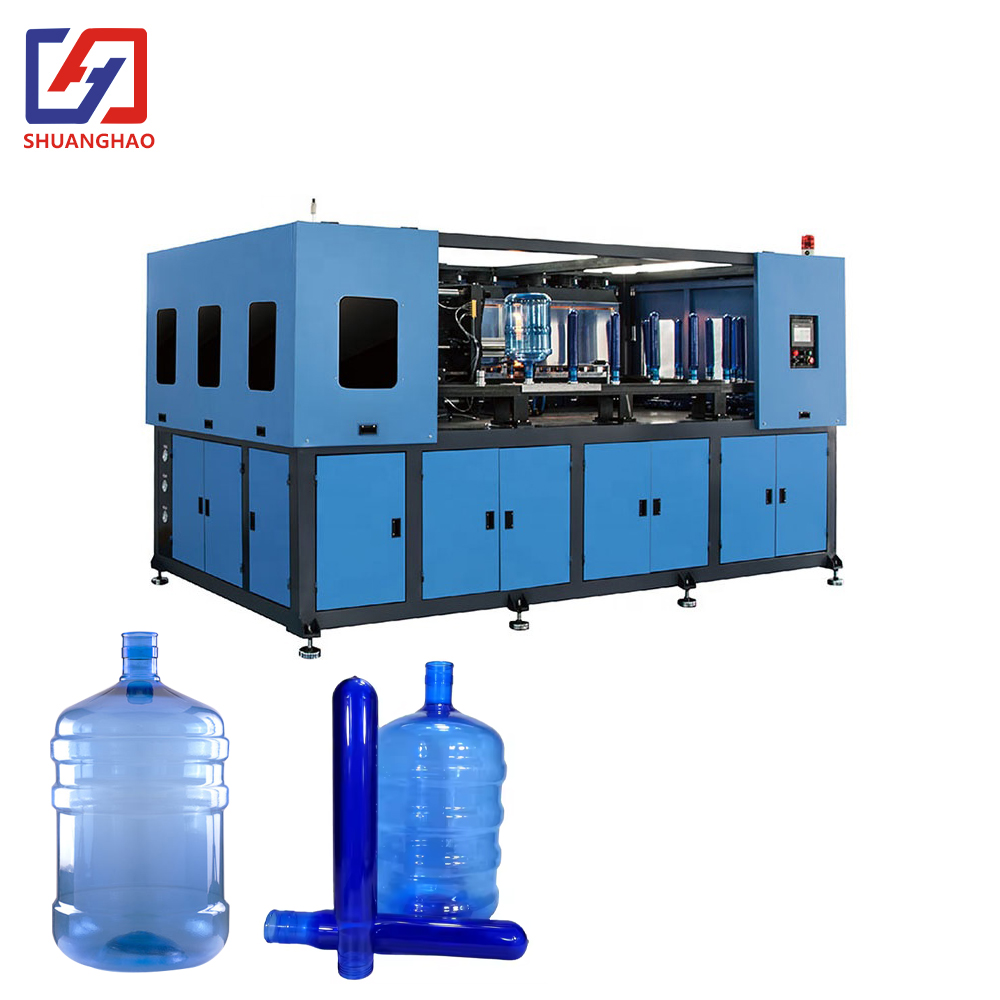

5 gallon bottle blow molding machine High Quality Plastic Blow Molding Moulding Machine Water Bottle For 19 Liter Barrel

5 gallon bottle blow molding machine High Quality Plastic Blow Molding Moulding Machine Water Bottle For 19 Liter Barrel

800-1000 pcs/h

SH-20 series is a stable two-step blow-down stretch automatic blowing machine. max volume 20L plastic bottle,suitable for blowing any kind of carbonated beverage bottle,sparkling beverage bottle,pure water bottle, mineral water bottle,fruit juice beverage bottle,cosmetic bottles,large diameter bottles, high temperature resistance bottles and other packaging bottles.


  • 10L-20L, 3L-5.5L
  • 30-45 days easy Finish
  • offers 24/7 support to ensure round-the-clock customer assistance.
  • Description
5 gallon bottle blow molding machine High Quality Plastic Blow Molding Moulding Machine Water Bottle For 19 Liter Barrel

After Sales Service

1. Installation, debug

We will arrange seasoned technician for debug and test production at the same time make the equipment reach the rated producing capacity of the line.

2. Training

Our company offer technology training to customer. The content of training is structure and maintenance of equipment, control and operation of equipment. After training, the technician of buyer could master the operation and maintenance, could adjust the process and treat different failures.

3. the sample service

1' We can send you the video of the running machine.

2' You are welcome to come to visit our factory,and see the machine running.

4. We can design the machines according your requirements,at the same time we will give you our professional suggestion,as you know,we have been in this industry for 17 years.

5. well-trained & experienced staff are to answer all your inquiries in English and Chinese

6 . 12 Months guarantee and life-long technical support.

7. Your business relationship with us will be confidential to any third party.

8. Good after-sale service offered, please get back to us if you got any question


Item
SH-20L-1





Bottle type specification
Cavity
1
Theory output
350
Max.volume
20L
Bottle mouth maximum overall diameter
150mm
Bottle biggest diameter
350mm
Bottle maximum height
550mm



Power specifications
Light tube quantity
48pcs
Light tube power
1.5KW
Maximum heating power
72KW
All electric machine installation
75KW
Actual consumption
52.5KW



Air pressure specification
Work pressure
7-9kg
Low-pressure gas consumption
1600L/min
Blow bottle pressure
25-35kg
Higher -pressure gas consumption
2000-3000Ltr/min


Forzen water specification
Work pressure
5-6 kg
Temperature range
10℃
Consumption
12000kcal/hr
Forzen water flow
88L/min

Machine specification
Size of the machine
5.2x2.0x2.0
Weight of the machine
6to

1.DETAILED IMAGES

Shuanghao machine seiko to create quality details

5 gallon bottle blow molding machine High Quality Plastic Blow Molding Moulding Machine Water Bottle For 19 Liter Barrel

2.Cooperated Brand

The main parts of The machines are from Germany, Japan, Switzerland, Korea, Taiwan and so on, They can make 10ml-25L bottles and barrels and jars with different designs and shapes with PET, PP, PE and other material. Our machines are sold to Malaysia, lndonesia, Thailand, Nigeria, Ecuador, Colombia, Paraguay, and many other countries and regions.To produce machines with the best quality and simple operation and with the best price is the aim for Meto Machinery to strive for.

5 gallon bottle blow molding machine High Quality Plastic Blow Molding Moulding Machine Water Bottle For 19 Liter Barrel

    3.Product Features

  • Stable and accurate running at high speed,adopt more stable and advanced microcomputer PLC control system.
  • Production process is fully automated, with the advantages of low investment, high efficiency, easy operation, simple maintenance and safety.
  • Suitable for flexible production of quantity and various bottle shape,wide range of applications,meet customer needs.
  • Manual and automatic methods of operation, human-machine interface control, simple operation.
  • Servo transmission system, high positioning accuracy, fast speed stability and good reliability.

4.Working Process

5 gallon bottle blow molding machine High Quality Plastic Blow Molding Moulding Machine Water Bottle For 19 Liter Barrel
5 gallon bottle blow molding machine High Quality Plastic Blow Molding Moulding Machine Water Bottle For 19 Liter Barrel
