600 4 Cavities Full Automatic Bottle Blowing Machine

600 4 Cavities Full Automatic Bottle Blowing Machine

4500-5000 pcs/h

Our products has covered all over China and exported to more than 100 countries,including Southeast Asia,Middle East,South America,Africa etc.We'd like to provide high quality solution to clients with our enthusiasm and rich experience.We sincerely hope to establish business relationship with friends all over the world.

Machine specification
Machine type Fully automatic PET stretch blow molding machine
Power supply  380VAC/50Hz (depending on client's country)
HP air compressor 2.0 m³/min, 3.0 Mpa
LP air compressor 1.6 m³/min, 1.0 Mpa

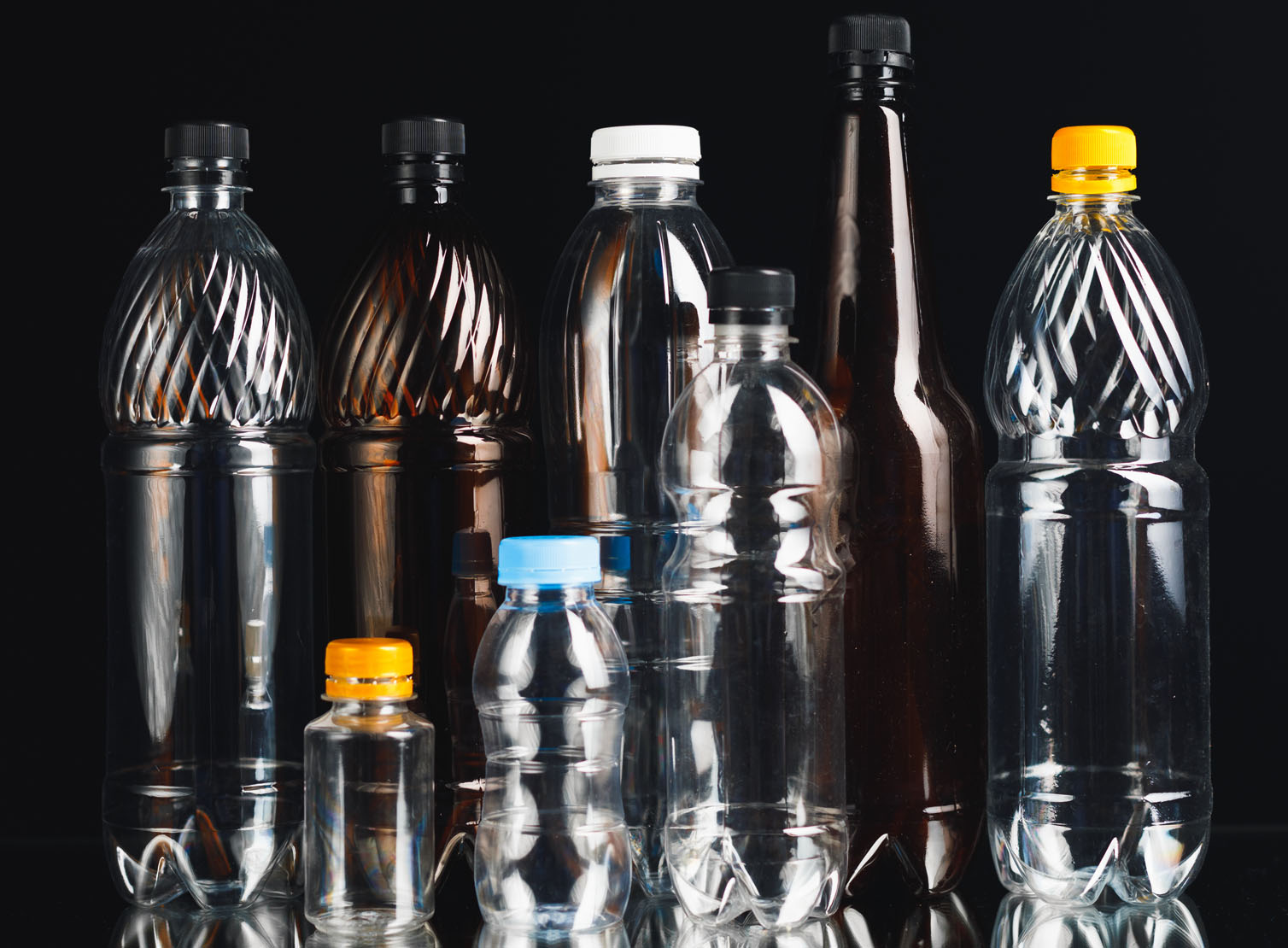

  • 550-750ml, 330-550ml, mineral water bottle, Jar Wide mouth
  • 30-45 days easy Finish
  • offers 24/7 support to ensure round-the-clock customer assistance.
  • Description
600 4 Cavities Full Automatic Bottle Blowing Machine


TYPE ITEM SH-600-4
Product parameters NO.of cavity 4Cavites
Production capacity 4500-5000pcs/hr
Max.volume 0.6L
Max.neck size 38mm
Max.diameter 65mm
Max.height 260mm
Power specifications NO.of lamp 35pcs
Max.heating power 32kw
Total machine power 32kw
Actual power consumption 15kw
Air pressure specifications Working pressure 7-9kg/cm2
Low pressure gas consumption 1600Ltr/min
Blow bottle pressure 25-35kg/c㎡
Hig pressure gas consumption 2200-2500Ltr/min
Cooling water specifications Chiller pressure 5-6kc/c㎡
Temperature range 10℃
Consumption 5600kcal/hr
Chilled water flow rate 30Ltr/min
Appearance specifications Machine size 3.0x1.5x1.9m
Machine weight 3.7T

1.DETAILED IMAGES

Shuanghao machine seiko to create quality details

600 4 Cavities Full Automatic Bottle Blowing Machine

2.Cooperated Brand

The main parts of The machines are from Germany, Japan, Switzerland, Korea, Taiwan and so on, They can make 10ml-25L bottles and barrels and jars with different designs and shapes with PET, PP, PE and other material. Our machines are sold to Malaysia, lndonesia, Thailand, Nigeria, Ecuador, Colombia, Paraguay, and many other countries and regions.To produce machines with the best quality and simple operation and with the best price is the aim for Meto Machinery to strive for.

600 4 Cavities Full Automatic Bottle Blowing Machine

    3.Product Features

  • Stable and accurate running at high speed,adopt more stable and advanced microcomputer PLC control system.
  • Production process is fully automated, with the advantages of low investment, high efficiency, easy operation, simple maintenance and safety.
  • Suitable for flexible production of quantity and various bottle shape,wide range of applications,meet customer needs.
  • Manual and automatic methods of operation, human-machine interface control, simple operation.
  • Servo transmission system, high positioning accuracy, fast speed stability and good reliability.

4.Working Process

600 4 Cavities Full Automatic Bottle Blowing Machine
600 4 Cavities Full Automatic Bottle Blowing Machine
