2000 6 Cavities Full Automatic Bottle Blowing Machine

2000 6 Cavities Full Automatic Bottle Blowing Machine

6000-6500 pcs/h

2000 series full-automatic bottle blowing machine is the most stable two-step down blowing full-automatic bottle blowing equipment of our company. It can blow 0.6L and 2L at most from one to six cavities. It is suitable for blowing carbonated beverage bottles, mineral water bottles, cosmetic bottles, large-diameter bottles, high-temperature resistant bottles and other packaging containers of any shape with crystalline plastics such as PET and PP as raw materials.

High Speed Servo Control PET Bottle Stretch Blow Moulding Machine
Suitable for all shapes of PET plastic bottles.Supply  bottle molding solution for various requirement on the capacity and bottle shapes,with free design service.
Capacity from 1000 to 20000 bottles/hour

  • 550-750ml, 330-550ml, 1000-2000ml, mineral water bottle, Cosmetic bottles
  • 30-45 days easy Finish
  • offers 24/7 support to ensure round-the-clock customer assistance.
  • Description
2000 6 Cavities Full Automatic Bottle Blowing Machine

Blow molding system is characterized by its reasonable structure, lower power consumption, good stability, flexible blowing process and simple operation, especially on the production of drinking water, carbonated beverage and other common PET bottles, as well as heat-resistant bottle, mid-temperature PET bottle, sterile cold PET bottle.

Technical Parameters

TYPE ITEM SH-2000-4 SH-2000-6
Product parameters Production capacity 4000-4500pcs/hr 6000-6500pcs/hr
Max.volume 2.0L 2.0L
Max.neck size 38mm 38mm
Max.diameter 110mm 110mm
Max.height 320mm 320mm
NO.of cavity 4 6
Power specifications NO.of lamp 40pcs 48pcs
Max.heating power 80kw 96kw
Total machine power 80kw 96kw
Actual power consumption 16kw 20kw

Air pressure specifications

Working pressure 0.7-0.9Map 0.7-0.9Map
Low pressure gas consumption 2000ltr/min 2500ltr/min
Blow bottle pressure 3.5Mpa 3.5Mpa
Hig pressure gas consumption 5000ltr/min 6500ltr/min
Cooling water specifications Chiller pressure 0.3-0.5Mpa 0.3-0.5Mpa
Temperature range 10℃ 10℃
Consumption 40L/Min 50L/Min
Appearance specifications Machine size 4.5*1.6*2.0cm 5.5*2.1*2.2cm

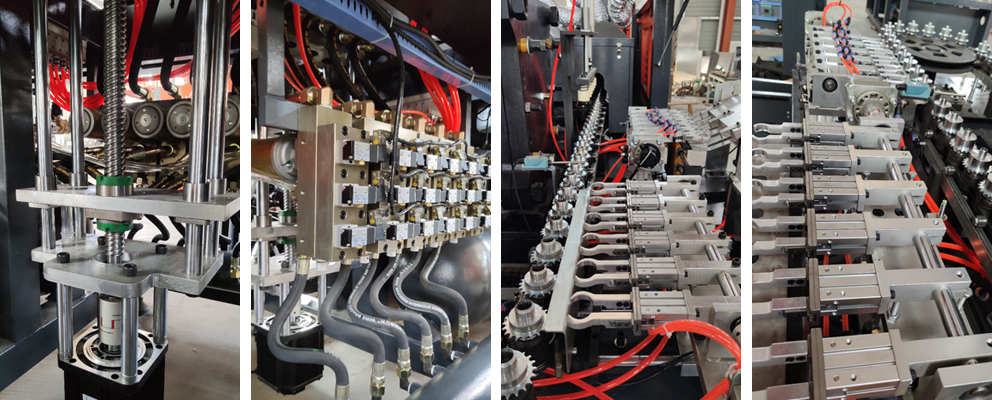

1.DETAILED IMAGES

Shuanghao machine seiko to create quality details

2000 6 Cavities Full Automatic Bottle Blowing Machine

2.Cooperated Brand

The main parts of The machines are from Germany, Japan, Switzerland, Korea, Taiwan and so on, They can make 10ml-25L bottles and barrels and jars with different designs and shapes with PET, PP, PE and other material. Our machines are sold to Malaysia, lndonesia, Thailand, Nigeria, Ecuador, Colombia, Paraguay, and many other countries and regions.To produce machines with the best quality and simple operation and with the best price is the aim for Meto Machinery to strive for.

2000 6 Cavities Full Automatic Bottle Blowing Machine

    3.Product Features

  • Stable and accurate running at high speed,adopt more stable and advanced microcomputer PLC control system.
  • Production process is fully automated, with the advantages of low investment, high efficiency, easy operation, simple maintenance and safety.
  • Suitable for flexible production of quantity and various bottle shape,wide range of applications,meet customer needs.
  • Manual and automatic methods of operation, human-machine interface control, simple operation.
  • Servo transmission system, high positioning accuracy, fast speed stability and good reliability.

4.Working Process

2000 6 Cavities Full Automatic Bottle Blowing Machine
2000 6 Cavities Full Automatic Bottle Blowing Machine
