5L Full Automatic Oil Bottle Blowing Machine

5L Full Automatic Oil Bottle Blowing Machine

1500-2000 pcs/h

Shuanghao Machinery's 5L linear bottle blowing machine stretches preforms by using a servo motor-controlled stretch rod. The advantage is that it can be stretched in sections, and positioning of the preform is at first in order to ensure the verticality of the preforms during stretching, then secondary stretching.

Ensure the uniformity and consistency of each preform stretching.At the same time, bottle blowing machine has a fast stretching speed and precise position. 5L series machine can be used in the production of PET water bottles, hot filling bottles, carbonated beverage bottles, edible oil bottles, and pesticide bottles.

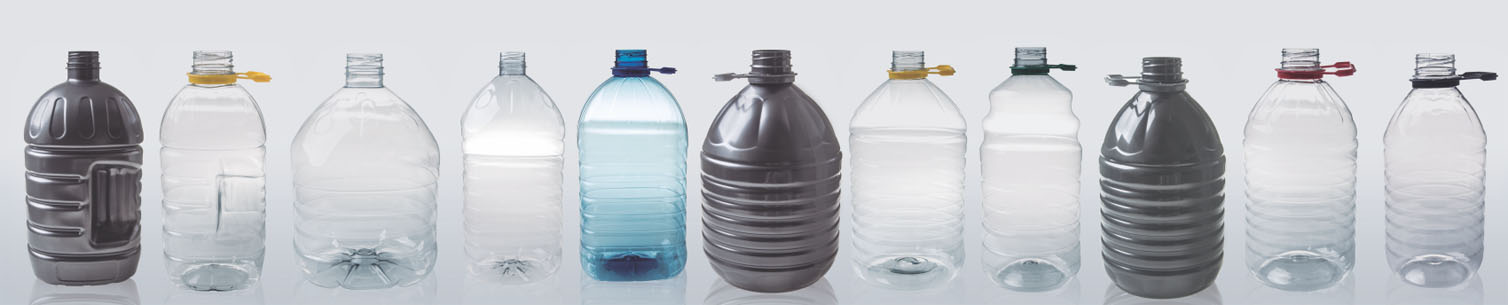

  • 10L-20L, 3L-5.5L, Edible oil bottle
  • 30-45 days easy Finish
  • offers 24/7 support to ensure round-the-clock customer assistance.
  • Description
5L Full Automatic Oil Bottle Blowing Machine

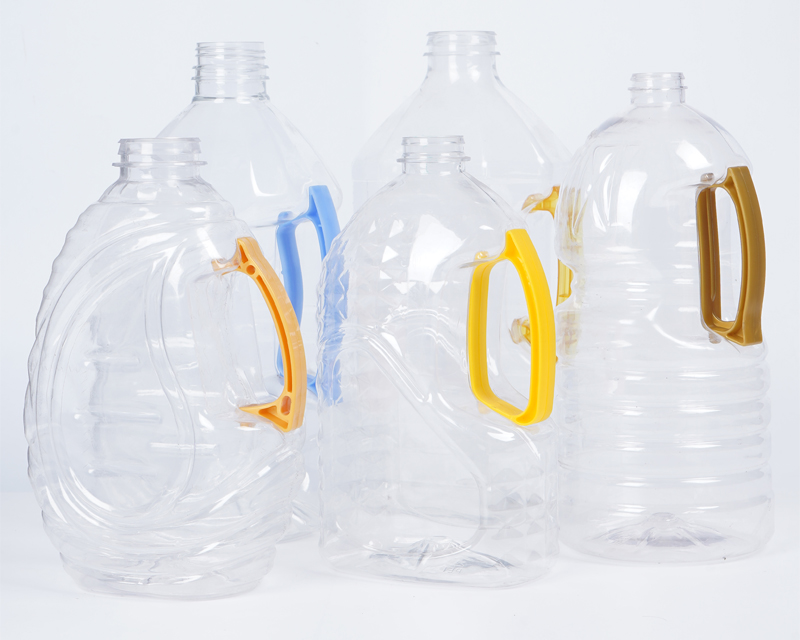

Edible oil bottle PET bottle blowing machine with up to 3 cavity, single cavity can manufacture PET bottles, 5 liters of cooking oil. This edible oil PET bottle blowing machine can also blow up other 2L large capacity plastic packaging containers, such as carbonated beverage bottles, middle and low temperature filling fruit juice beverage bottles, mineral water bottles, pesticide bottles and other plastic bottles blowing molding.

Technical Parameters

TYPE ITEM SH-5L-2
Product paramerers Max. volume 5L
NO. of cavity 2Cavites
Production capacity 1500-2000pcs/hr
Max. neck size 45-80mm
Max. diameter 190mm
Max. height 360mm
Power specifications NO. of lamp 60pcs
Max. heating power 100kw
Total machine Power 100kw
Actual power consumption 22kw
Air pressure specifications Working pressure 0.7-0.9mpa
Low pressure gas consumption 2600ltr/min
Blow bottle pressure 25-35kg/c㎡
High pressure gas consumption 4500-5000ltr/min
Chiller specifications Working pressure 5-6kc/c㎡
Temperature range 10℃
Consumption 6600kcal/hr
Chilled water flow rate 45ltr/min
Appearance specifications Machine size 5.6*2.1*2.1m
Machine weight 5.5T


1.DETAILED IMAGES

Shuanghao machine seiko to create quality details

5L Full Automatic Oil Bottle Blowing Machine

2.Cooperated Brand

The main parts of The machines are from Germany, Japan, Switzerland, Korea, Taiwan and so on, They can make 10ml-25L bottles and barrels and jars with different designs and shapes with PET, PP, PE and other material. Our machines are sold to Malaysia, lndonesia, Thailand, Nigeria, Ecuador, Colombia, Paraguay, and many other countries and regions.To produce machines with the best quality and simple operation and with the best price is the aim for Meto Machinery to strive for.

5L Full Automatic Oil Bottle Blowing Machine

    3.Product Features

  • Stable and accurate running at high speed,adopt more stable and advanced microcomputer PLC control system.
  • Production process is fully automated, with the advantages of low investment, high efficiency, easy operation, simple maintenance and safety.
  • Suitable for flexible production of quantity and various bottle shape,wide range of applications,meet customer needs.
  • Manual and automatic methods of operation, human-machine interface control, simple operation.
  • Servo transmission system, high positioning accuracy, fast speed stability and good reliability.

4.Working Process

5L Full Automatic Oil Bottle Blowing Machine
5L Full Automatic Oil Bottle Blowing Machine
