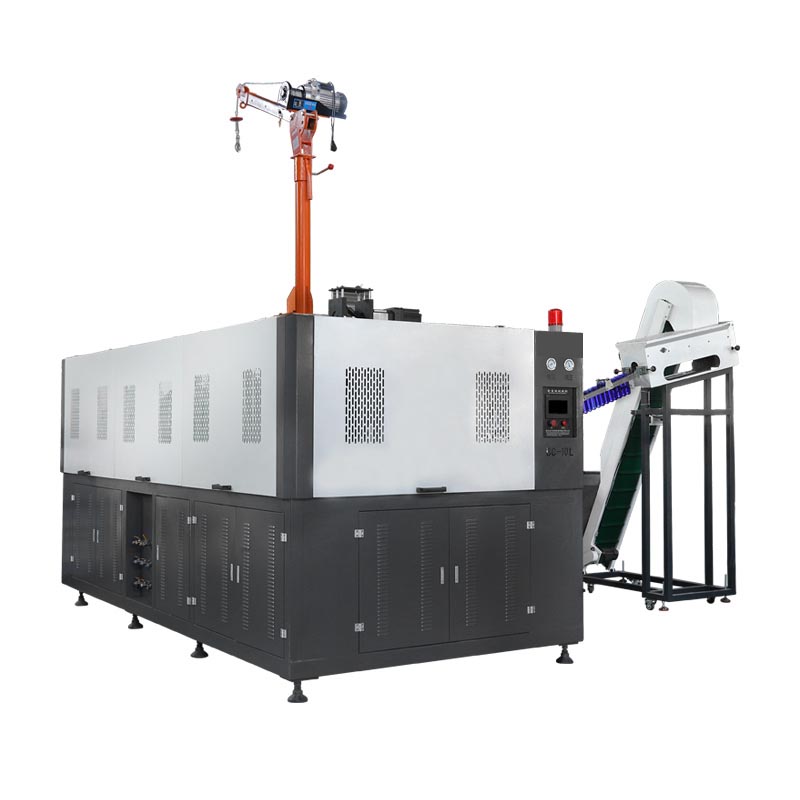

10L 2 Cavities Full Automatic Bottle Blowing Machine

10L 2 Cavities Full Automatic Bottle Blowing Machine

1500-1800 pcs/h

We intention to create extra worth for our buyers with our prosperous resources, superior machinery, experienced workers and superb services for 10L 20L PE Plastic Bottle Jerry Can Blow Moulding Machine. Our strong production capacity and excellent market performance have won the appreciation of the industry. In the development and growth of the company, we continue to introduce many advanced equipment, cultivate a group of experienced personnel, and strive to dedicate the best products and services to our customers.

  • 10L-20L, Edible oil bottle
  • 30-45 days easy Finish
  • offers 24/7 support to ensure round-the-clock customer assistance.
  • Description
10L 2 Cavities Full Automatic Bottle Blowing Machine

TYPE ITEM SH-5L-2 SH-10L-2
Product paramerers Max. volume 5L 10L
NO. of cavity 2Cavites 2Cavites
Production capacity 1500-2000pcs/hr 1500-1800pcs/hr
Max. neck size 45-80mm 45-80mm
Max. diameter 190mm 210mm
Max. height 360mm 450mm
Power specifications NO. of lamp 60pcs 60pcs
Max. heating power 100kw 100kw
Total machine Power 100kw 100kw
Actual power consumption 22kw 22kw
Air pressure specifications Working pressure 0.7-0.9mpa 0.7-0.9mpa
Low pressure gas consumption 2600ltr/min 2600ltr/min
Blow bottle pressure 25-35kg/c㎡ 25-35kg/c㎡
High pressure gas consumption 4500-5000ltr/min 4500-5000ltr/min
Chiller specifications Working pressure 5-6kc/c㎡ 5-6kc/c㎡
Temperature range 10℃ 10℃
Consumption 6600kcal/hr 6600kcal/hr
Chilled water flow rate 45ltr/min 45ltr/min
Appearance specifications Machine size 5.6*2.1*2.1m 5.6*2.1*2.1m
Machine weight 5.5T 5.5T

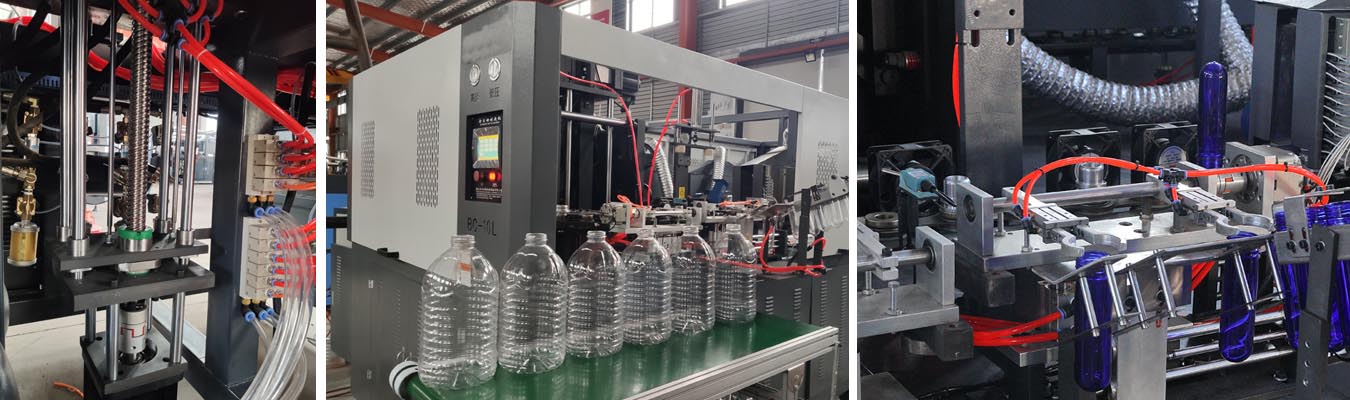

1.DETAILED IMAGES

Shuanghao machine seiko to create quality details

10L 2 Cavities Full Automatic Bottle Blowing Machine

2.Cooperated Brand

The main parts of The machines are from Germany, Japan, Switzerland, Korea, Taiwan and so on, They can make 10ml-25L bottles and barrels and jars with different designs and shapes with PET, PP, PE and other material. Our machines are sold to Malaysia, lndonesia, Thailand, Nigeria, Ecuador, Colombia, Paraguay, and many other countries and regions.To produce machines with the best quality and simple operation and with the best price is the aim for Meto Machinery to strive for.

10L 2 Cavities Full Automatic Bottle Blowing Machine

    3.Product Features

  • Stable and accurate running at high speed,adopt more stable and advanced microcomputer PLC control system.
  • Production process is fully automated, with the advantages of low investment, high efficiency, easy operation, simple maintenance and safety.
  • Suitable for flexible production of quantity and various bottle shape,wide range of applications,meet customer needs.
  • Manual and automatic methods of operation, human-machine interface control, simple operation.
  • Servo transmission system, high positioning accuracy, fast speed stability and good reliability.

4.Working Process

10L 2 Cavities Full Automatic Bottle Blowing Machine
10L 2 Cavities Full Automatic Bottle Blowing Machine
