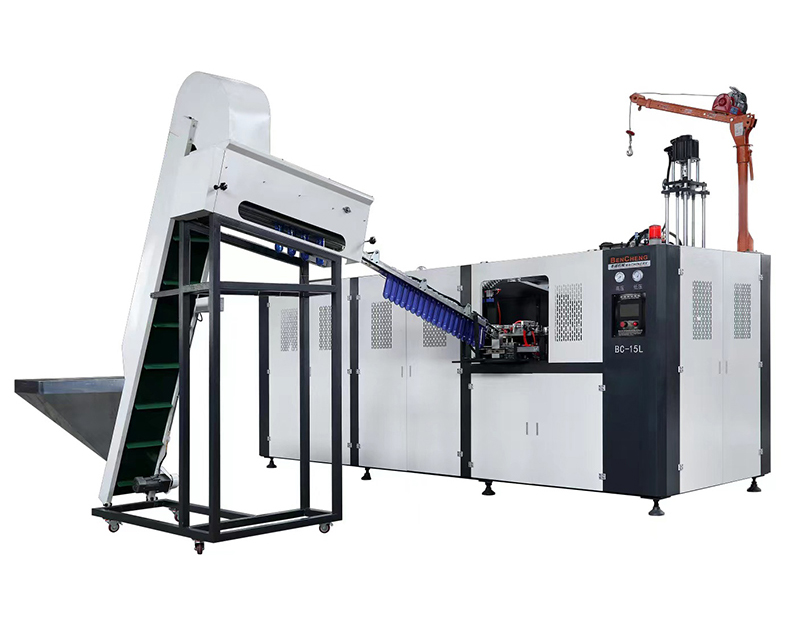

10L 15L 2 Cavities Full Automatic Bucket Blowing Machine
1500-1800 pcs/h
full automatic linear blowing machine, especially for large volume bottles from 5 liter to max 25 liters. This type use servo driving system to make sure the large volume bottles blowing stable and can save power more than 30%. it can be used to produce edible oil bottle, water bottle in 25L.
Appy to 10-20 Liter mineral water bottle,pure water bottle,etc. Servo clamping,Servo stretching. All life-long technical support.
Less labor,Easy operaation and easy maintaince.
- 10L-20L, Edible oil bottle
- 30-45 days easy Finish
- offers 24/7 support to ensure round-the-clock customer assistance.
10L-20L plastic pure water bottle blowing machine
5 gallon PET blow moulding machine is used to produce 5gallon PET bottle that is now demanded extremely in the market. Facing great demand for 5 gallon PET bottle at market, we will certainly become the right machine for your investment. The whole procedure is automatic. It is controlled with microcomputer. In order to achieve the purpose of automatic transporting bottles, the user should connect the conveyor belt with the blow molding machine. By transmission device, the machine can be connected to the filling machine directly and start inline filling.
This bottle blowing machine mainly includes: automatic feeding system, heating system, rail system, mold clamping system, bottle blowing system and control system.
| TYPE | ITEM | SH-10L-2 | SH-15L-2 |
| Power specifications | Max. volume | 10L | 15L |
| NO. of cavity | 2Cavites | 2Cavites | |
| Production capacity | 1500-1800pcs/hr | 1300-1600pcs/hr | |
| Max. neck size | 45-80mm | 45-80mm | |
| Max. diameter | 210mm | 260mm | |
| Max. height | 450mm | 480mm | |
| Power specifications | NO. of lamp | 60pcs | 60pcs |
| Max. heating power | 100kw | 100kw | |
| Total machine Power | 100kw | 100kw | |
| Actual power consumption | 22kw | 22kw | |
| Air pressure specifications | Working pressure | 0.7-0.9mpa | 0.7-0.9mpa |
| Low pressure gas consumption | 2600ltr/min | 2600ltr/min | |
| Blow bottle pressure | 25-35kg/c㎡ | 25-35kg/c㎡ | |
| High pressure gas consumption | 4500-5000ltr/min | 4500-5000ltr/min | |
| Chiller specifications | Working pressure | 5-6kc/c㎡ | 5-6kc/c㎡ |
| Temperature range | 10℃ | 10℃ | |
| Consumption | 6600kcal/hr | 6600kcal/hr | |
| Chilled water flow rate | 45ltr/min | 45ltr/min | |
| Appearance specifications | Machine size | 5.6*2.1*2.1m | 5.6*2.1*2.1m |
| Machine weight | 5.5T | 5.5T |
1.DETAILED IMAGES
Shuanghao machine seiko to create quality details
2.Cooperated Brand
The main parts of The machines are from Germany, Japan, Switzerland, Korea, Taiwan and so on, They can make 10ml-25L bottles and barrels and jars with different designs and shapes with PET, PP, PE and other material. Our machines are sold to Malaysia, lndonesia, Thailand, Nigeria, Ecuador, Colombia, Paraguay, and many other countries and regions.To produce machines with the best quality and simple operation and with the best price is the aim for Meto Machinery to strive for.
- Stable and accurate running at high speed,adopt more stable and advanced microcomputer PLC control system.
- Production process is fully automated, with the advantages of low investment, high efficiency, easy operation, simple maintenance and safety.
- Suitable for flexible production of quantity and various bottle shape,wide range of applications,meet customer needs.
- Manual and automatic methods of operation, human-machine interface control, simple operation.
- Servo transmission system, high positioning accuracy, fast speed stability and good reliability.
3.Product Features
4.Working Process
