Daily Chemistry Bottle

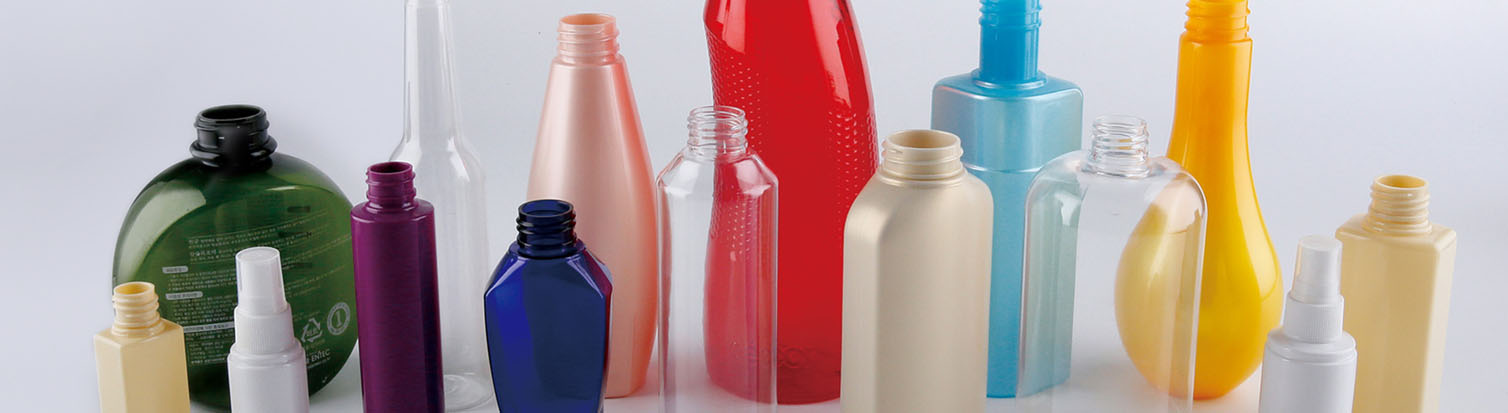

Blowing 2.0 liters, suitable for blowing any shape of cosmetic bottles, washing liquid bottles, shampoo bottles, skin care bottles, disinfectant bottles, disinfectant water bottles, medical alcohol bottles, alcohol bottles made of crystalline plastics such as PET and PP. Hand sanitizer bottles, hand sanitizer bottles and other packaging containers, etc. The H series bottle blowing machine does not have an automatic conveyor to transport the preforms (tubes), and the preforms can only be inserted manually. Advantages: The production cost of the machine is reduced to the greatest extent; the scrap rate is lower than that of the semi-automatic bottle blowing machine, the production speed is fast, the performance is stable, and the operation is extremely simple.
- 30-45 days easy Finish
- offers 24/7 support to ensure round-the-clock customer assistance.
shampoo bottle making machines 2000ml
Fully automatic,low investment,high efficiency,easy operation, simple maintenance and safety.
Servo transmission system,high positioning accuracy, fast speed and stability, good reliability.Gas circuit design will divide action and blowing into three parts to meet the needs of different pressure for blowing bottles and movement;Adopt high pressure and double crank arm link locking,strong clamping force.
High adjusting performance to enable preheat the preforms perfectly by adjust the voltage control area in the PLC, which could adjust the temperature of the infrared lights in the pre-heater, and keep the proper temperature and humidity invariable.
High safeties with security automatic-locking device in each mechanical action, which will make the production into a perfect safe environment, in case of the breakdown in certain procedure.
use the air cylinder to avoid contamination and noise.
| Ltem | 2L-4 | |
| Bottle type specification | Cavity | 4 |
| Theory output | 4500-5000BPH | |
| Max.volume | 2L | |
| Bottle mouth maximum overall diameter | 28-38mm | |
| Bottle biggest diameter | 100mm | |
| Bottle maximun height | 330mm | |
| Power specification | Light tube quantity | 32pcs |
| Light tube power | 1.25KW | |
| Maximum heating pwoer | 40KW | |
| All electric machine installtion | 43KW | |
| Actual consumption | 30%--60% | |
| Air pressure specification | Work pressure | 7-9kg/cm2 |
| Low-pressure gas consumption | 1600L/min | |
| Blow bottle pressure | 25-35kg/cm2 | |
| Higher-pressure ges consumption | 3000Ltr/min | |
| Forzen water specification | Work pressure | 5-6 kg/c㎡ |
| Temperature range | 10℃ | |
| Consumption | 8000kcal/hr | |
| Forzen water flow | 88L/min | |
| Machine specification | Size of the machine | 4.1x1.6x1.9 |
| Weight of the machine | 3.5ton |
1.DETAILED IMAGES
Shuanghao machine seiko to create quality details
2.Cooperated Brand
The main parts of The machines are from Germany, Japan, Switzerland, Korea, Taiwan and so on, They can make 10ml-25L bottles and barrels and jars with different designs and shapes with PET, PP, PE and other material. Our machines are sold to Malaysia, lndonesia, Thailand, Nigeria, Ecuador, Colombia, Paraguay, and many other countries and regions.To produce machines with the best quality and simple operation and with the best price is the aim for Meto Machinery to strive for.
- Stable and accurate running at high speed,adopt more stable and advanced microcomputer PLC control system.
- Production process is fully automated, with the advantages of low investment, high efficiency, easy operation, simple maintenance and safety.
- Suitable for flexible production of quantity and various bottle shape,wide range of applications,meet customer needs.
- Manual and automatic methods of operation, human-machine interface control, simple operation.
- Servo transmission system, high positioning accuracy, fast speed stability and good reliability.
