Lampshade Semi-automatic Bottle Blowing Machine

Lampshade Semi-automatic Bottle Blowing Machine

200-300 pcs/h

We are a bottle blowing machine manufacturer. We are committed to offering customized solutions for the market and customers, whether individual products or complete sets of equipment. Although the market, application, and customers are different, we have a unique concept to guide the success of customers.

  • 10L-20L, 3L-5.5L
  • 30-45 days easy Finish
  • offers 24/7 support to ensure round-the-clock customer assistance.
  • Description
Lampshade Semi-automatic Bottle Blowing Machine


1. Introduction:

pet bottle blow moulding machine price is suitable for producing PET/PE and PP plastic containers
And bottles in all shapes. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle Oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc.
2. Our advantage:
1)High safety. High speed with high efficiency.
2)Manual saving, one man is enough for operation the machine.
3)Stable performing with easy maintaining.
4)Imported PLC controlling and man-machine interface computer.
5)Japan Omron inspection sensor.
6)Adopt the new type double bend arm and the four rod-clamping structure(won the patent): Cross direction; Middle mould board is move parallel; The distance between two mold board is adjusted by the chain wheel. Thus, the clamping force is very strong.
7)Power saving design that can increase your profits.
8)Segregate type air controlling system, which is designed for avoiding waste pollution.
9)Perfet after-sale service. We can offer you spare parts for free at the first year.
TYPE ITEM SH-20L
Machine Product volume 20L
Product capacity 200-300pcs/h
Product diameter ≤65mm
Template size 420x660mm
Thickness 350-420mm
Clamping stroke ≤350mm
Clamping force 80KN
Max. stretching stroke 530mm
Working pressure ≤1.0Mpa
Blow bottle Pressure ≤4.0Mpa
Blow bottle power 2Kw
Machine weight 2500Kw
Machine dimension 2800*720*2160mm
Heater Power 10Kw
Weight 800Kg
Dimension 2200*750*1800mm

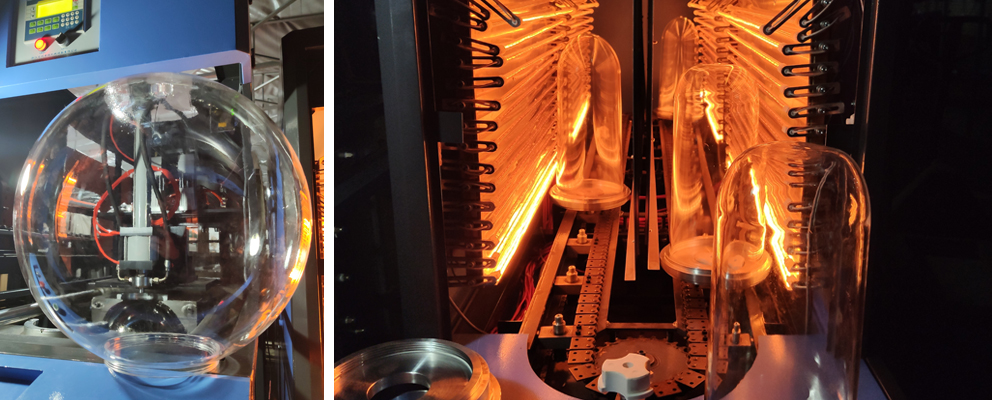

1.DETAILED IMAGES

Shuanghao machine seiko to create quality details

Lampshade Semi-automatic Bottle Blowing Machine

2.Cooperated Brand

The main parts of The machines are from Germany, Japan, Switzerland, Korea, Taiwan and so on, They can make 10ml-25L bottles and barrels and jars with different designs and shapes with PET, PP, PE and other material. Our machines are sold to Malaysia, lndonesia, Thailand, Nigeria, Ecuador, Colombia, Paraguay, and many other countries and regions.To produce machines with the best quality and simple operation and with the best price is the aim for Meto Machinery to strive for.

Lampshade Semi-automatic Bottle Blowing Machine

    3.Product Features

  • Stable and accurate running at high speed,adopt more stable and advanced microcomputer PLC control system.
  • Production process is fully automated, with the advantages of low investment, high efficiency, easy operation, simple maintenance and safety.
  • Suitable for flexible production of quantity and various bottle shape,wide range of applications,meet customer needs.
  • Manual and automatic methods of operation, human-machine interface control, simple operation.
  • Servo transmission system, high positioning accuracy, fast speed stability and good reliability.

4.Working Process

Lampshade Semi-automatic Bottle Blowing Machine
Lampshade Semi-automatic Bottle Blowing Machine
